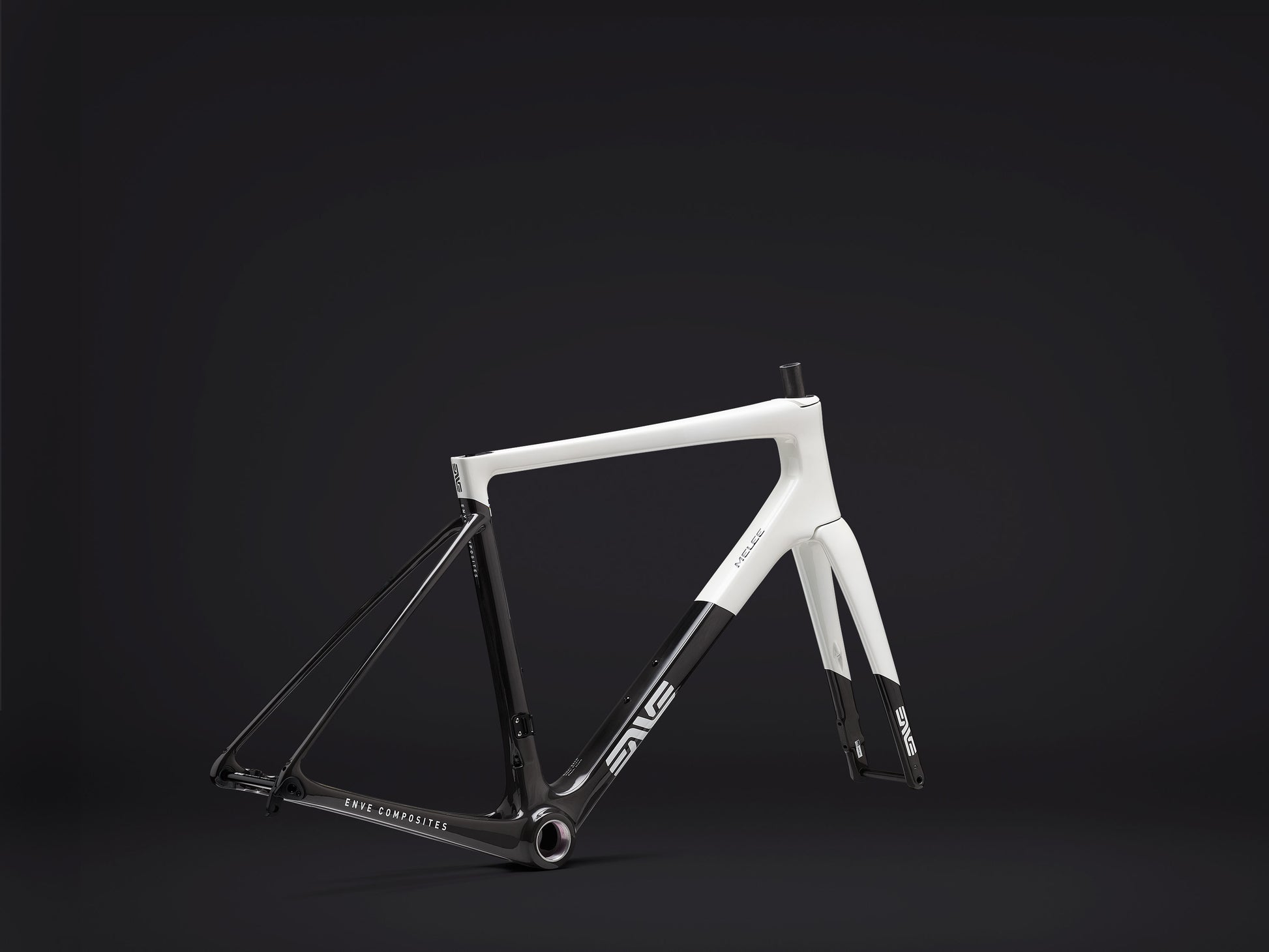

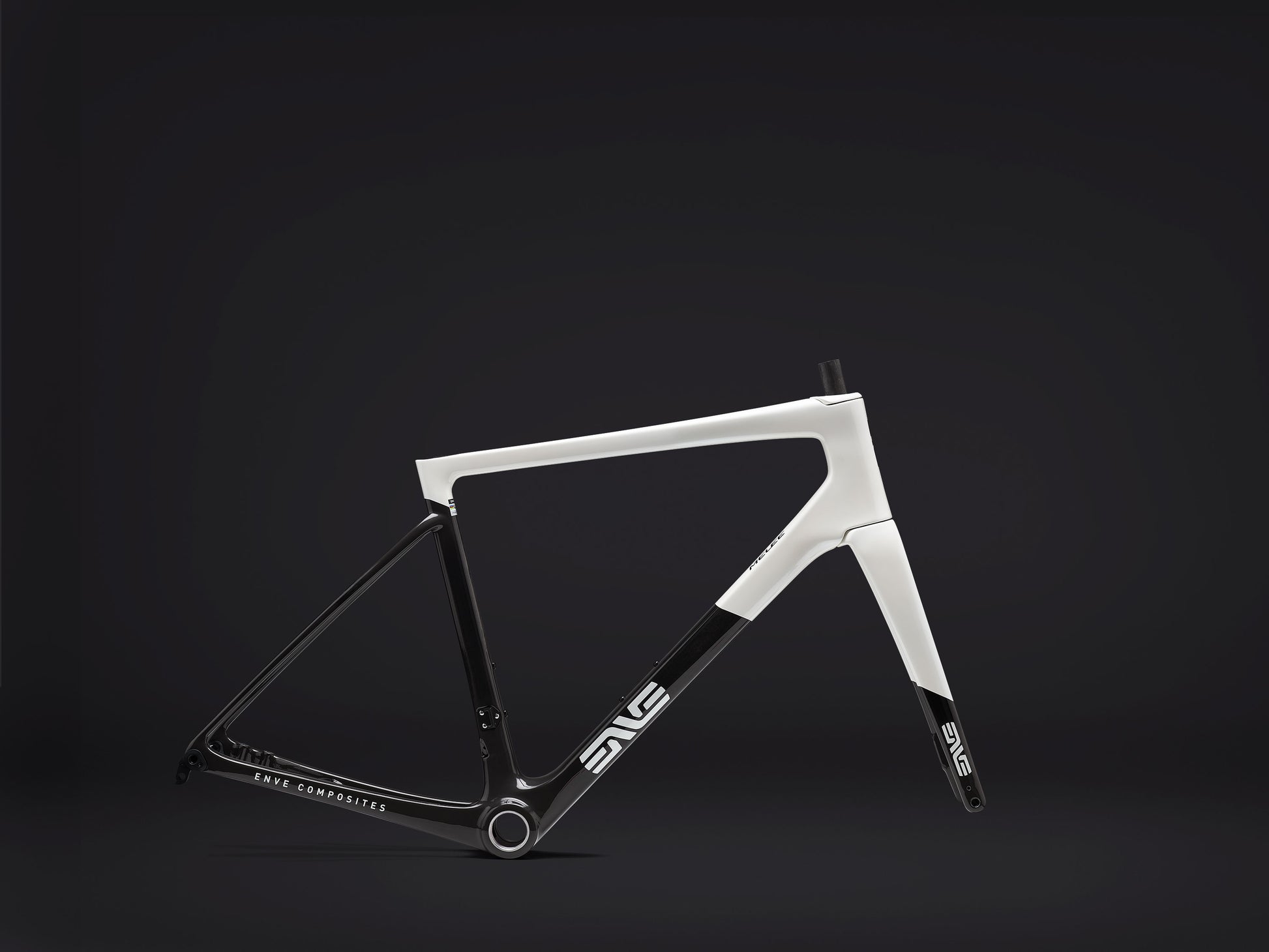

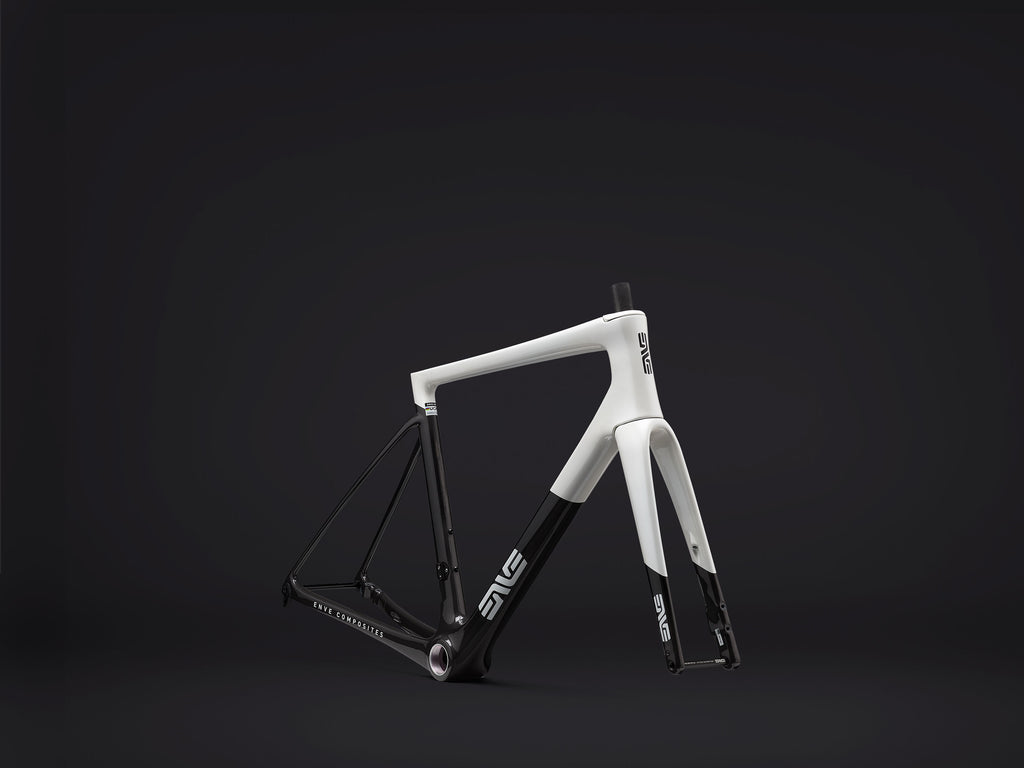

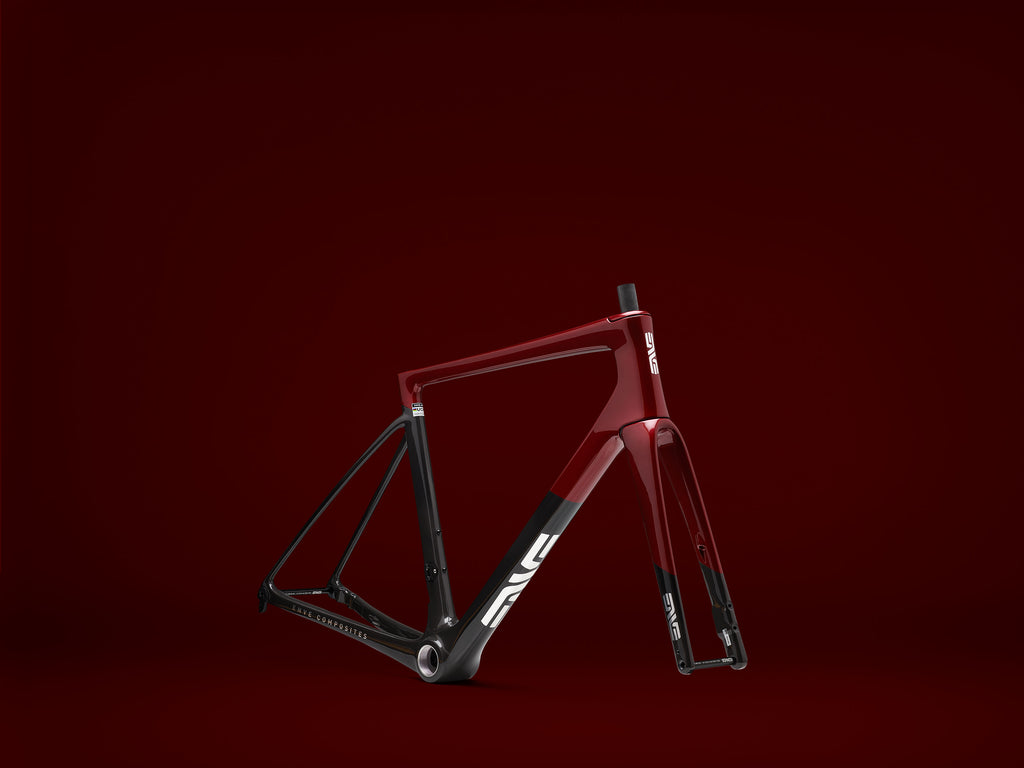

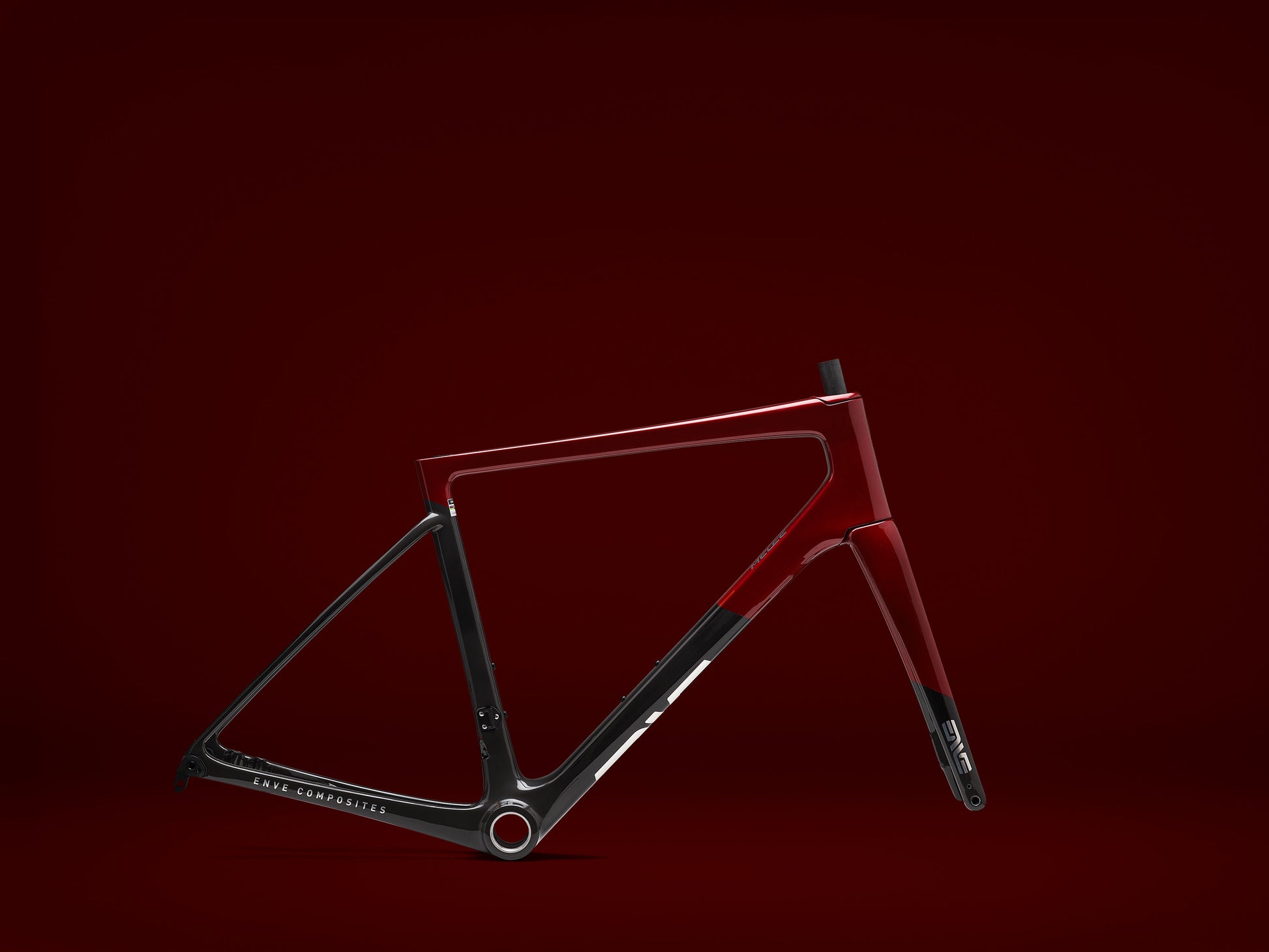

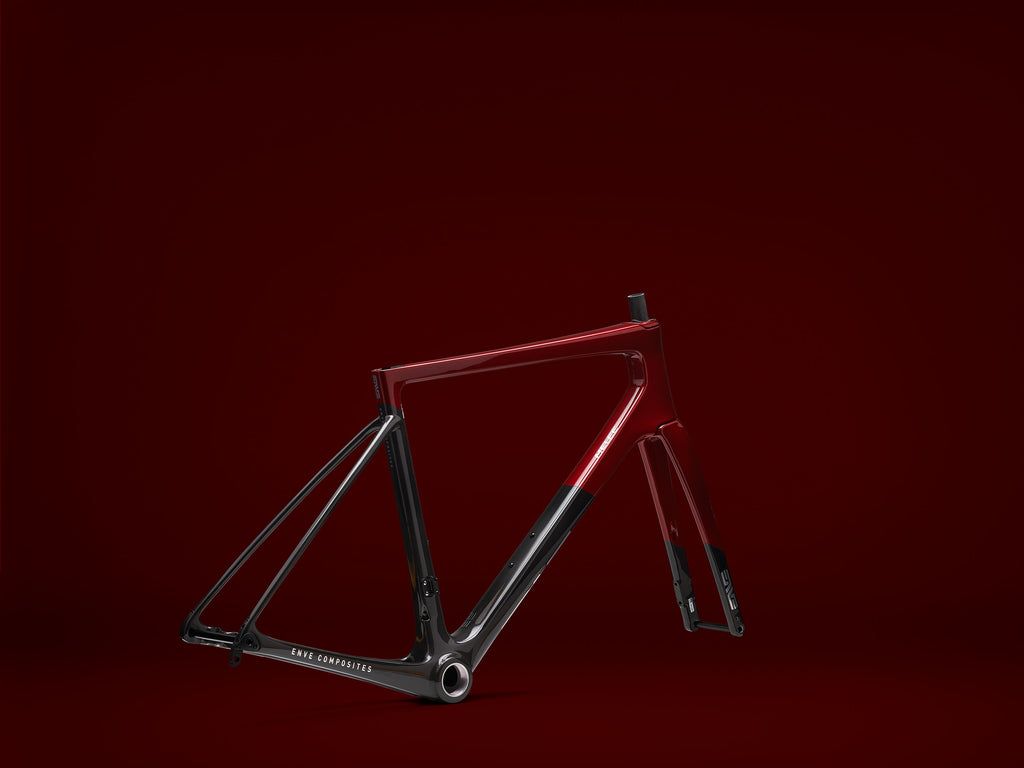

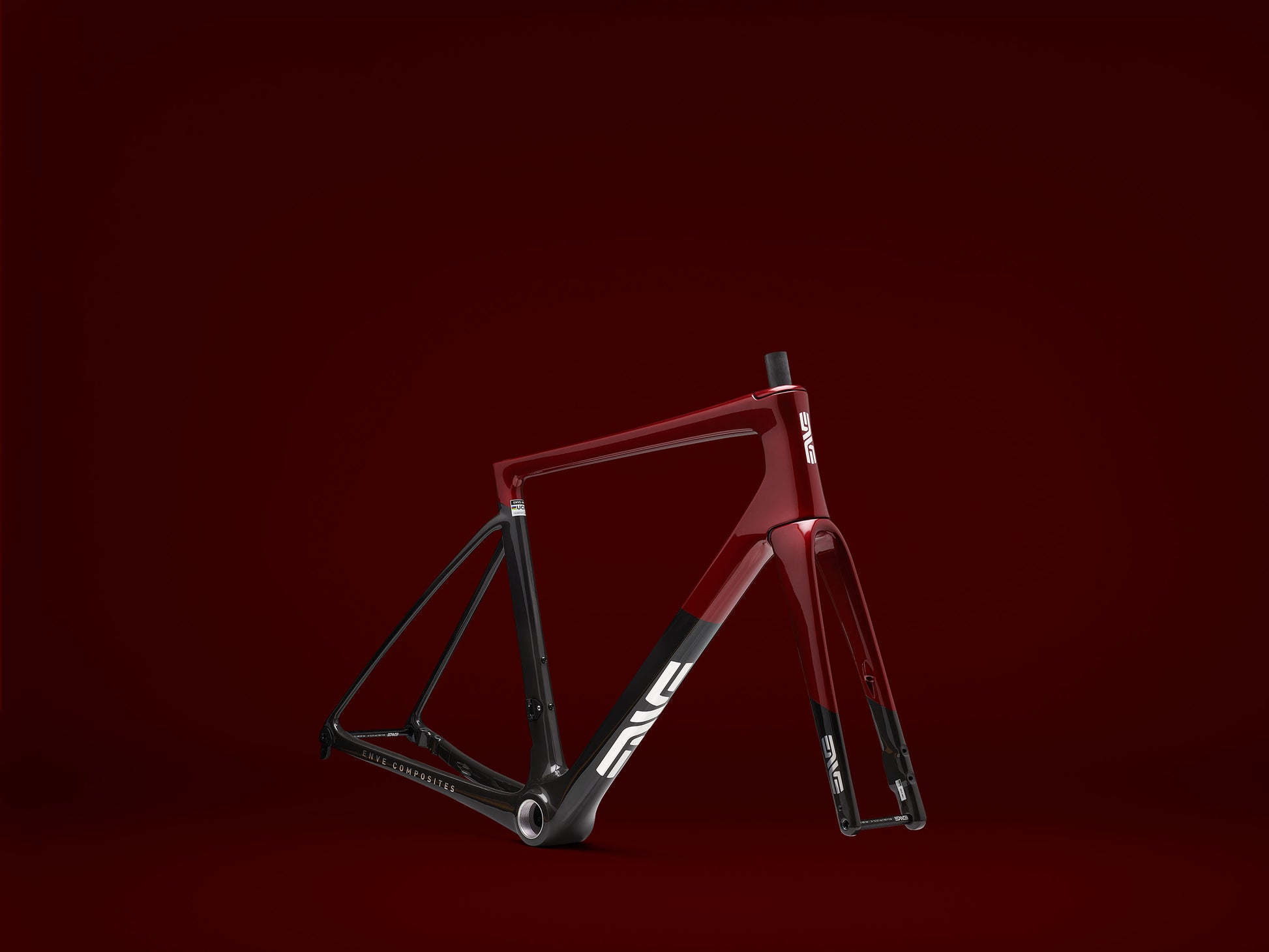

ENVE MELEE Frameset
$6,495.00
Brand | Enve
Pickup available at 45 Cranfield, Unit 6
Usually ready in 24 hours
An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the Melee as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.
For fit guidance, consult your trusted ENVE retailer or professional bike fitter, and explore the ENVE Best-Fit Calculator to achieve a chassis configuration that’s as precise as it is personal.
Product Details
- Real-World Fast™ aero optimization
- Tube shapes complement SES rim shapes
- Max Tire Clearance: 35 mm
- Frame Weight: 850 grams (56cm, Painted, No Hardware)
Frame Specifications
| Frame Material | ENVE M.O.D Carbon |
| Fork Material | ENVE M.O.D Carbon |
| Target Application | Road Race/Performance |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43, 39 |
| Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
| Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.5, TL:14) |
| Minimum Tire Size | 25c |
| Optimal Tire Size | 27c-32c |
| Maximum Listed Tire Clearance | 35c |
| Frame Routing | Internal |
Frame Geometry
Component compatibility
| Handlebars | ENVE IN-Route Recommended |
| Stem | ENVE IN-Route Recommended |
| Seat Posts | Aero Seatpost |
What's Included
| Package | PN | Description |
| Frame | ||
| Fork (Rake is Frame Size Dependent) | ||
| Installed On Fork | 200-2009-008 | Front Axle |
| Installed On Frame | 000-0050-951 | Rear Axle |
| Installed On Frame | 100-5003-014 | Front Derailleur Mount |
| Installed On Frame | 100-5003-013 | Rear Derailleur Hanger |
| Installed On frame | 000-0050-903 | M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head) |
| Installed On Frame | 000-0050-946 | Fender Mount Set Screws (M5x0.8x10mm) |
| Installed On Frame | 100-5003-904 | Chainstay Protector |
| Disc Brake Rotor Protector | ||
| In Bag | 100-5003-903 | Front Derailleur Housing Grommet |
| Front Derailleur Di2 Grommet | ||
| Front Derailleur Cable Hole Grommet | ||
| In Bag | 100-5003-901 | Seatpost Clamp Kit |
| In Bag | 100-5003-014 | Headset Kit |
| In Bag | 100-5003-XXX | Top Headset Bearing Cover (Frame Color Dependent) |
| In Bag | 200-0000-032 | Fork Compression Plug |
| In Bag | 000-1000-971 | Fork Brake Caliper Bolts and Washers (M5x0.8x40mm Torx Button Head Screw, SS) |
| In Bag | Owner's Manual | |
| In Bag | Torque Wrench (Includes Extra Accessory Bits) | |
| In Bag | Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam) |
