Pinarello has always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between the head designers. The DOGMA F achieves the perfect blend of the two.

INNOVATION

CARBON M40X

The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.

DOWN TUBE

The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag

NEW AERO-KEEL BB

Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.

TOP TUBE

Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.

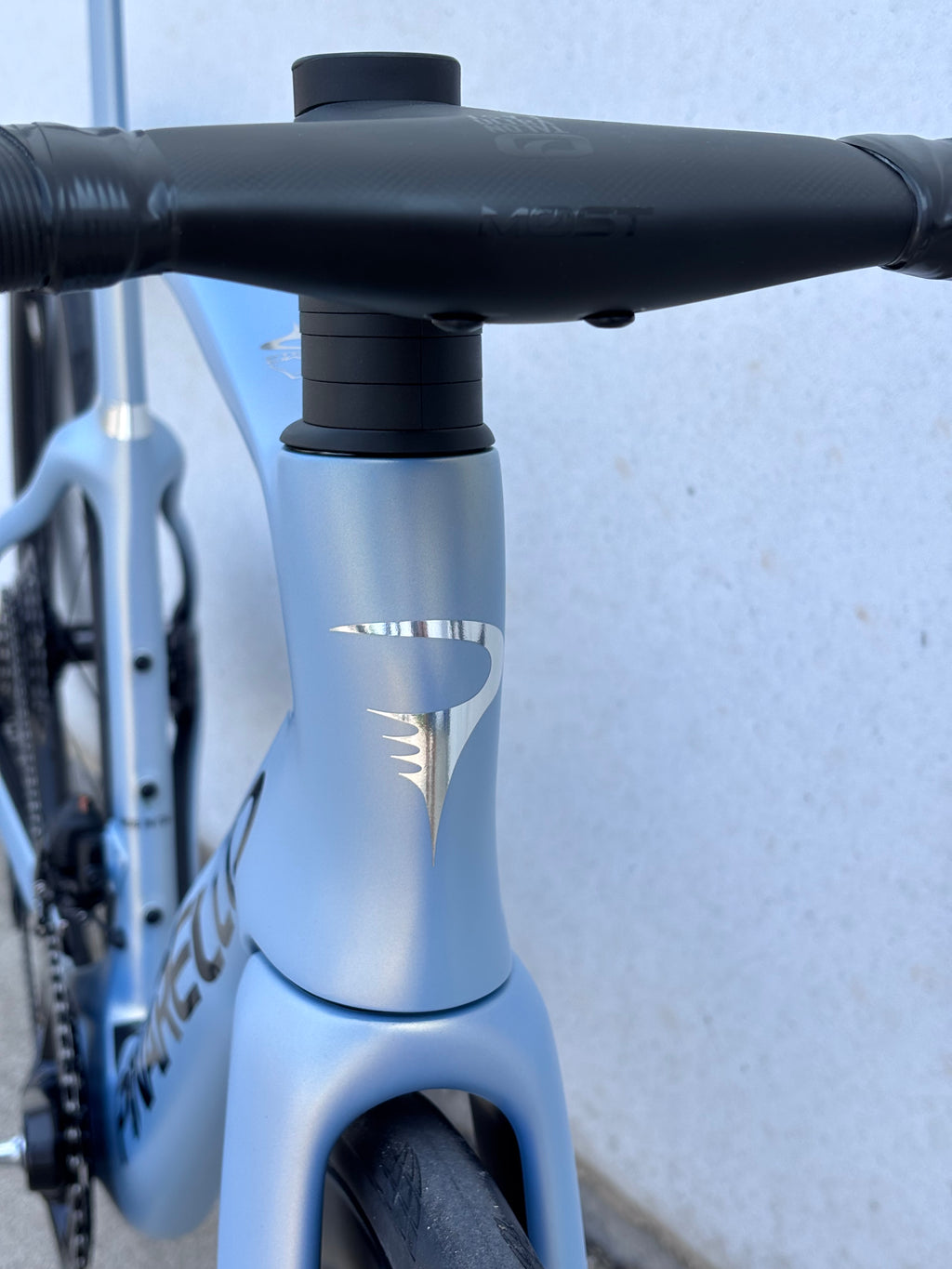

HEADSET

To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.

THRU AXLES

New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame

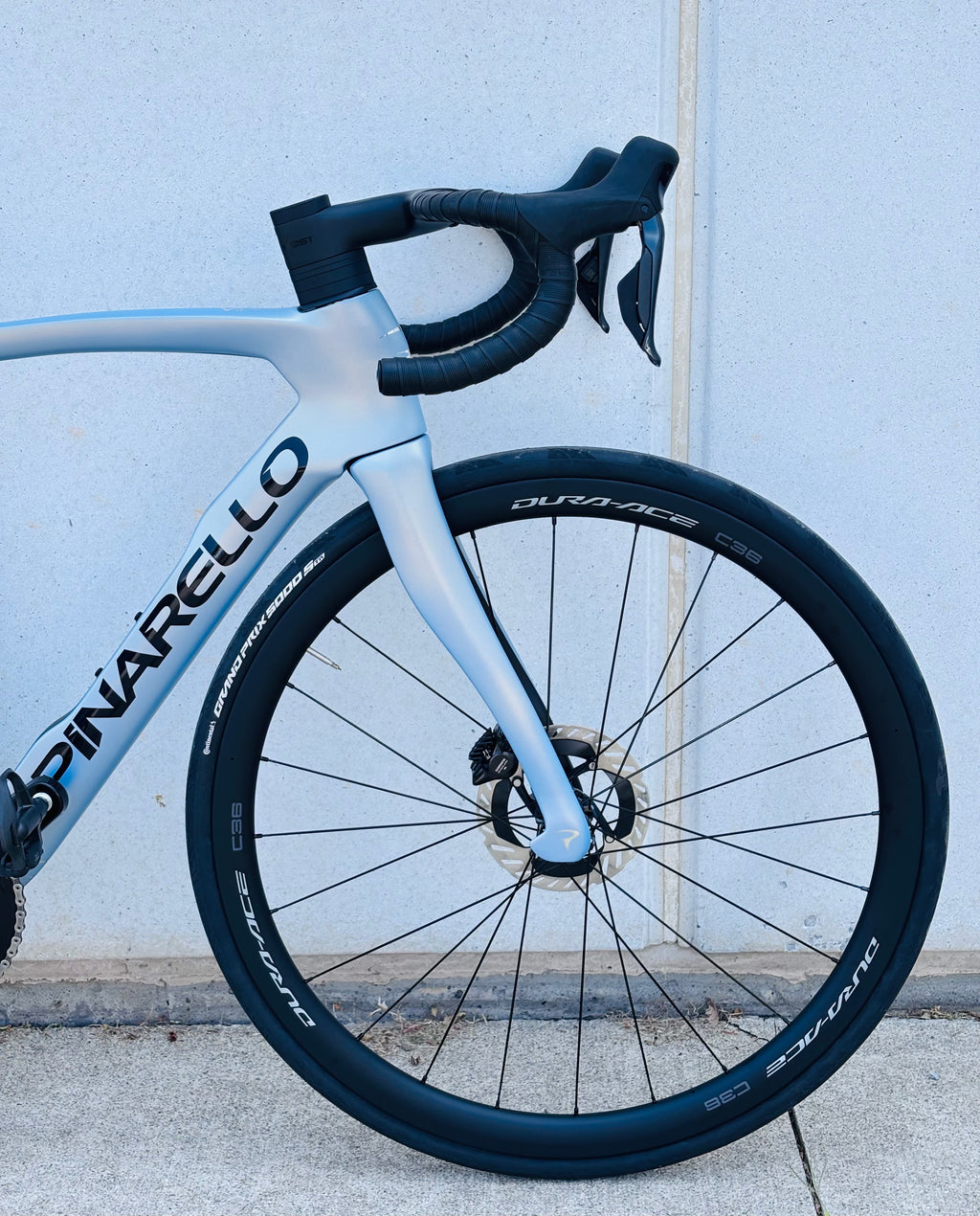

NEW ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.

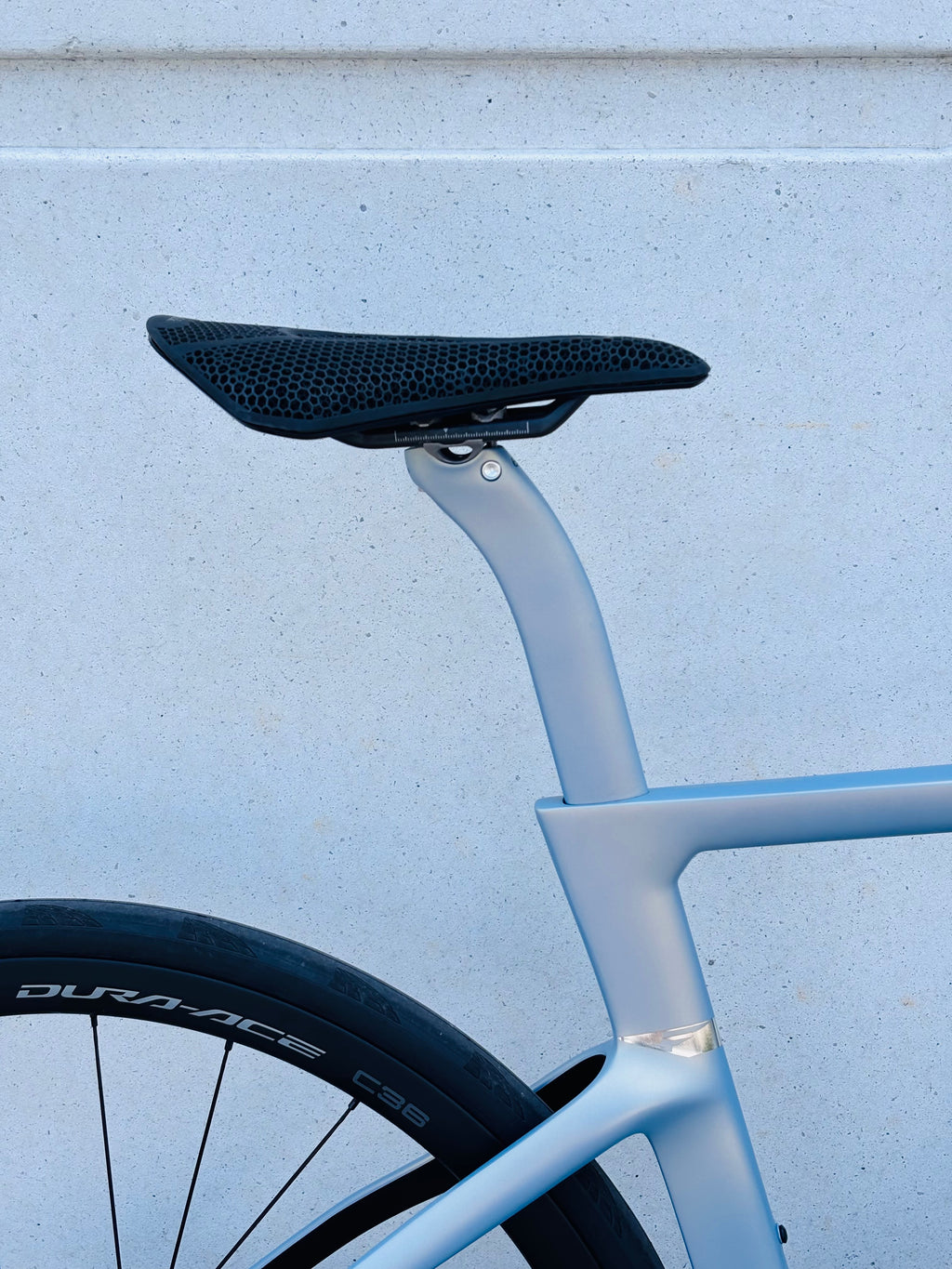

INTEGRATED SEAT POST CLAMP

Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.

NEW TALON FAST

The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.

• FRAME: Carbon M40X, TiCR™ cable routing, Italian BB (threaded), UCI approved
• FORK: New Onda Fork with slimmer design improves aerodynamics
• SPACING: 12 X 100 / 12X142
• COCKPIT: Integrated and more aero
• TIRE CLEARANCE: Up to 700C x 30mm

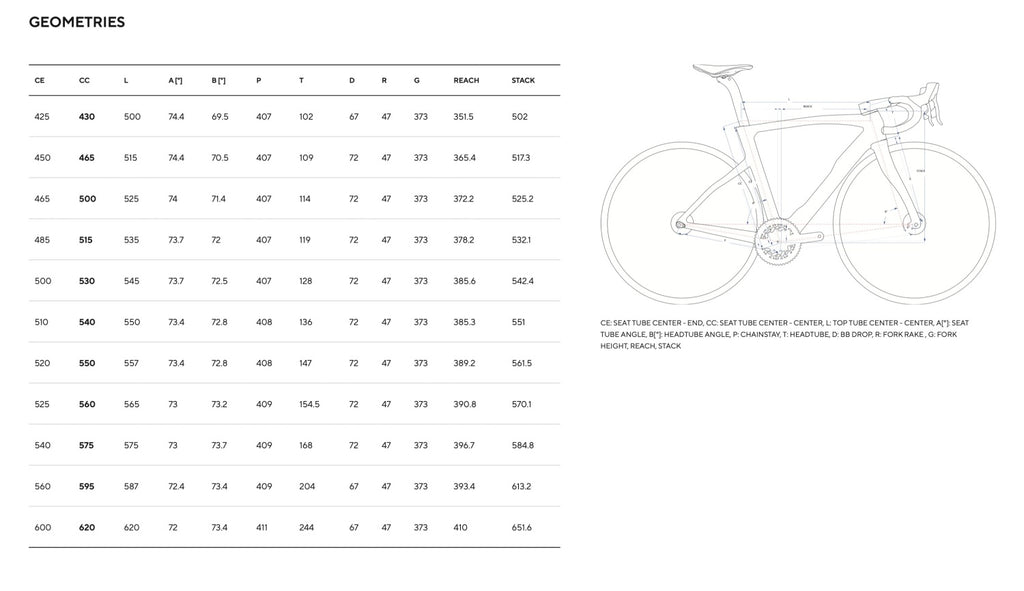

• GEOMETRY: Race (see chart below)
• SIZE: 53 cm(see geometry chart)
• COLOUR: Luxtor Venice

COMPONENTS

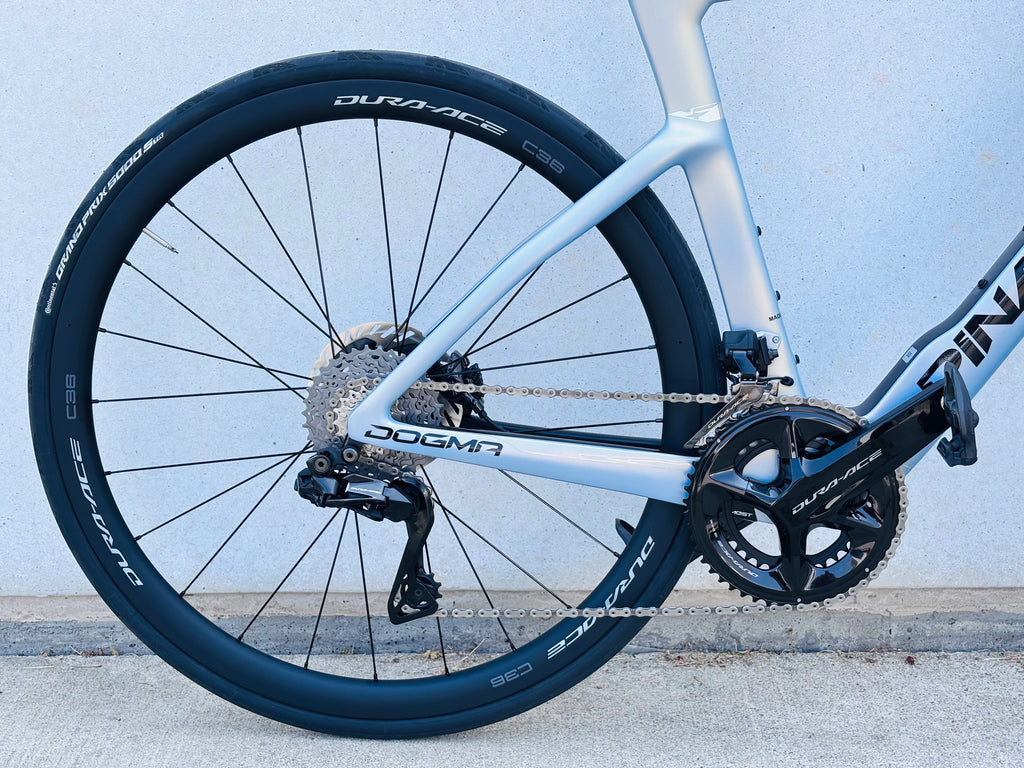

• Groupset: Shimano Dura-Ace Di2 Hydraulic Disc 2 x 12 speed R9270
  • Crankset 50-34 chainrings, 170mm
  • Cassette: 11-34
• Wheels: Shimano Dura-Ace C36 Tubeless compatible
• Tires: Continental GP 5000 700c x 28mm, tubeless ready
• Saddle: Pinarello Most
• Handlebars:  Pinarello Most Talon Ultra Fast 1K Stem/Handlebar
  • Drop: 125m
  • Reach: 80mm
  • Outward Bending: 4°
  • Width: 420mm (outer-outer) 400mm (center-center)
  • Stem Length: 110mm
  • Stem Angle: -8 degrees
  • Weight: 390 grams
  • Ultra Mount - Includes under computer GoPro style bracket for camera or light, mounts for Garmin, Wahoo and Polar.
  • Holders: Garmin, Wahoo, and Polar interchangeable
  • Accessories: Bracket for action cameras and headlights

• Pedals not included
