Tom Ritchey rides about 10,000 miles (16,000 km) per year, mostly off-road. Combine that with more than 50 years of crafting bicycles, and it’s no wonder that the Outback is an icon in the gritty world of gravel and adventure cycling.
Standout features for this edition of the 2025 Outback include internal routing for a dropper post, a rack mount on the fork crown, and internal dynamo routing. Aurora and Winter Sage colorways offer riders more options to style their ride beyond the bike’s existing practical and adaptable features, but the “big” news is, this Outback also comes in size XXL.
Bikepacking, road and off-road, you name it…the Ritchey Outback is designed to do it all.
TECHNICAL SPECIFICATIONS
FRAME
- Materialheat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

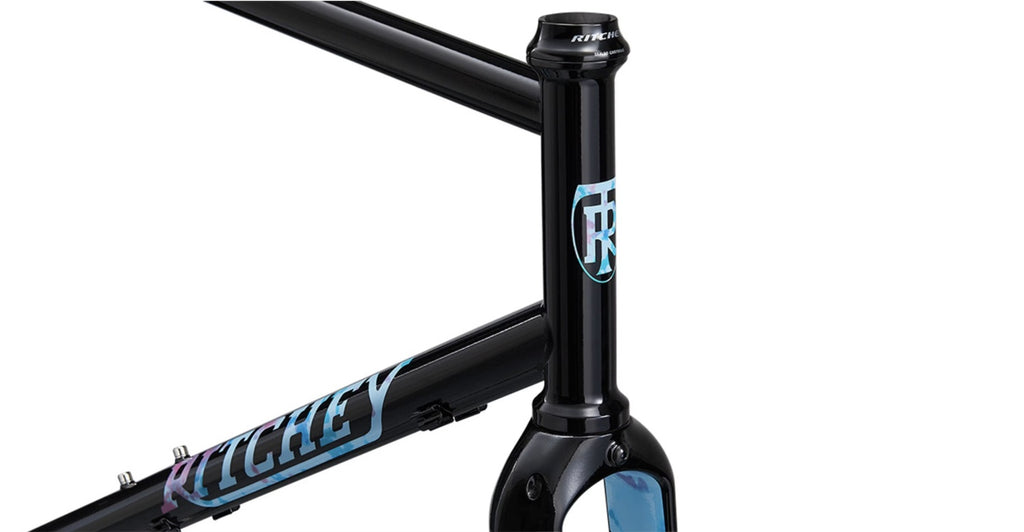

- Ultra-light forged and machined straight 1-1/8" headtube
- Electrophoretic Deposition (ED Coat) treated for corrosion resistance
- Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)

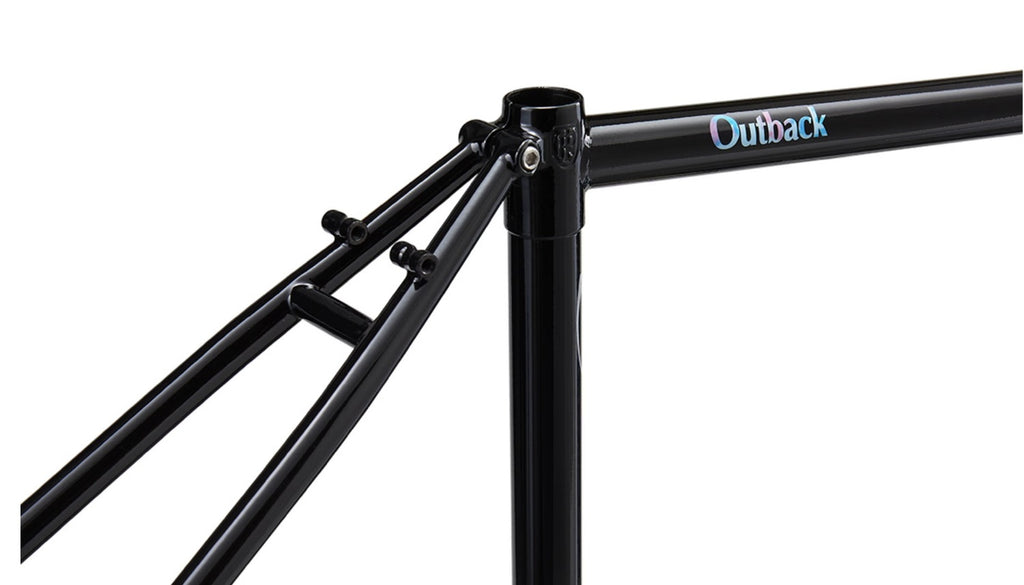

- 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

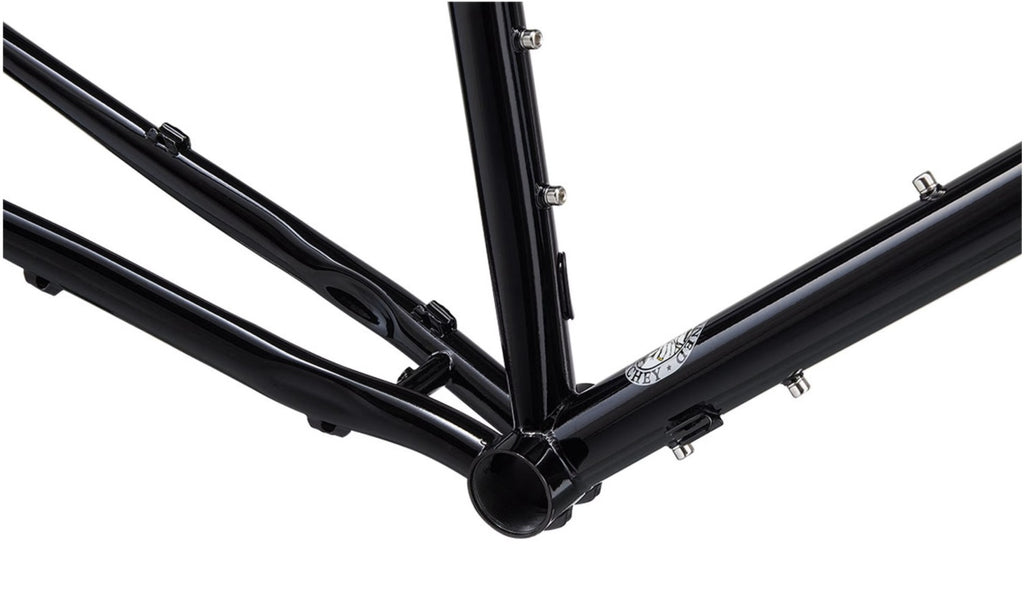

- Bottom bracket: 68mm - English threaded
- 142mm spacing (12mm alloy thru-axle included)
- Crankset min/max ring size - single36 to 46t / double: 46/30t to 50/34t
- Can accommodate 1X or 2X chainrings
- Chainline: 49mm
- Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
- Bottle cage mounts: 3
- Rack and fender mounts
- Stealth wire routing for semi-wireless Di2 groupsets
- DSP internal (seat tube only) routing available
- External cable routing
- WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

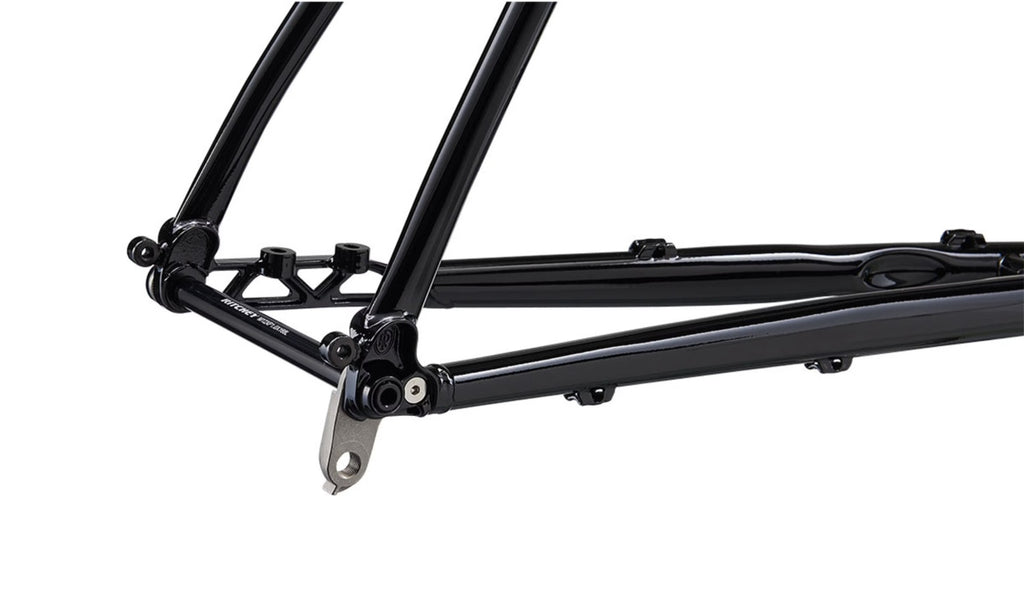

- Replaceable stainless-steel derailleur hanger
FORK
- New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
- 1-1/8" straight steerer with integrated 45-degree crown race
- Steerer length: 300mm
- Fork length: 390mm
- Axle-crown: 393mm
- Rake/Offset: 50mm
- 100mm spacing (12mm alloy thru-axle included)
- Dynamo light mount
- Dynamo cable internal routing
- Fork max payload: 3kg per side
- 30mm maximum spacers below stem
TIRE COMPATIBILITY
- Wheel and tire compatibility: 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
- Frame spacing: 58mm
- Fork spacing: 60mm
BRAKE COMPATIBILITY
- Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)
- Frame flat-mount bracket height: 10mm
DETAILS
- Sizes: XS / S / M / L / XL / XXL
- Frame weight: 2,175g (size L - w/o thru-axle)
- Fork weight: 445g (with uncut steerer / not including axle)
- Color: Aurora
